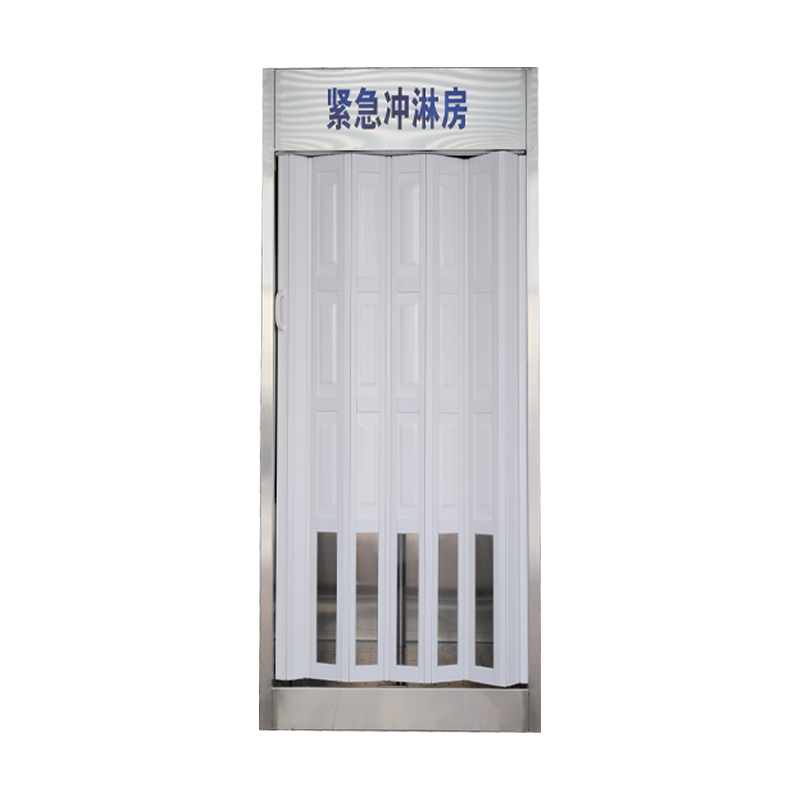

Laboratory shower room

Product parameters:
Size: 1000*900*2380mm (customizable)
Material:
Shower room material: SUS304 stainless steel, thickness 1.2MM Brand: Shanxi Taiyuan Iron and Steel Co., Ltd. Place of Origin: Shanxi
Pipe material: 304 stainless steel wall Thickness: 2.5MM Brand: (Taiwan Yongda) Place of Origin: Suzhou
Shower door material: PVC hard curtain sliding door
Standard: American Standard ANSI Z 358.1-2014, EN15154.1/2:2006
Function: wash your eyes, flush your body,
Working pressure: 0.2MPa-0.6MPa
Working environment temperature: 5℃-40℃
Water inlet size: 1- 1/4″ national standard outer wire
Drain size: 2″ American standard outer wire
Eyewash flow: 12-18L pm
Punch flow: 120-180L pm

Surface treatment “mirror surface high-precision polishing

Flow regulating device: It has a flow regulating device and a pressure reducing valve, which can be applied to different pressure places

Eyewash nozzle: One-piece injection molding, with a buffer filter, which can remove impurities in the water and avoid water jets from damaging the eyes.

Shower nozzle water jet: the surrounding water jet is curtain-shaped, and the center is linear water jet to ensure sufficient water flow and large washing area

Shower handle/rod: The flush handle is made of ABS. The grip is designed to imitate the hand shape according to ergonomic principles, which is comfortable to use. It is easy to operate. The handle is formed by a 13mm stainless steel tube and is rigidly designed.

Shower ball valve connecting rod: integrated precision injection molding
