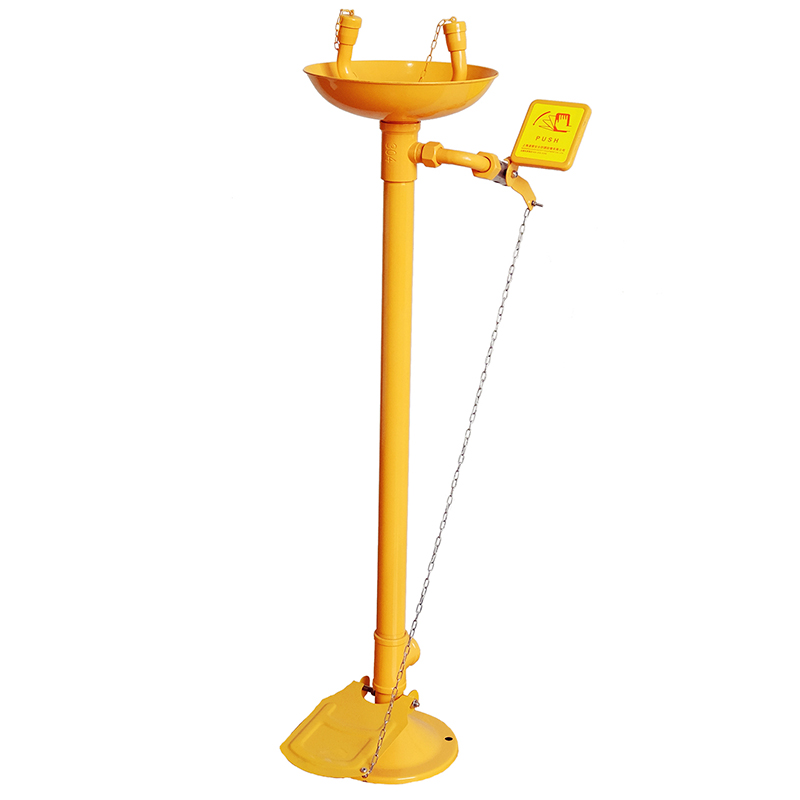

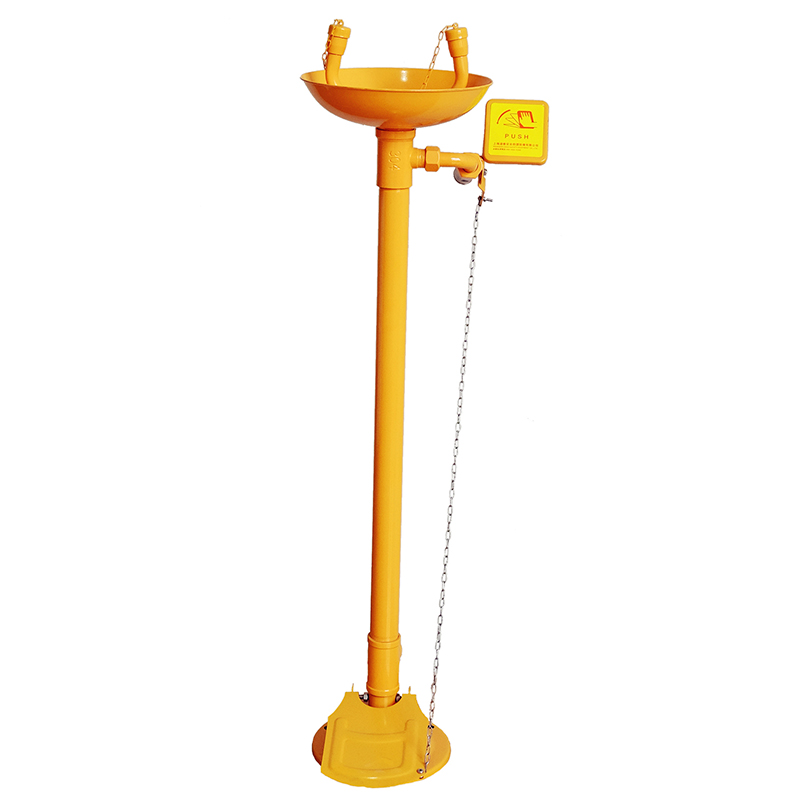

DAAO6623-J Pedestal Stainless steel Emergency Eye Wash Station with ABS Coating & Foot Pedal

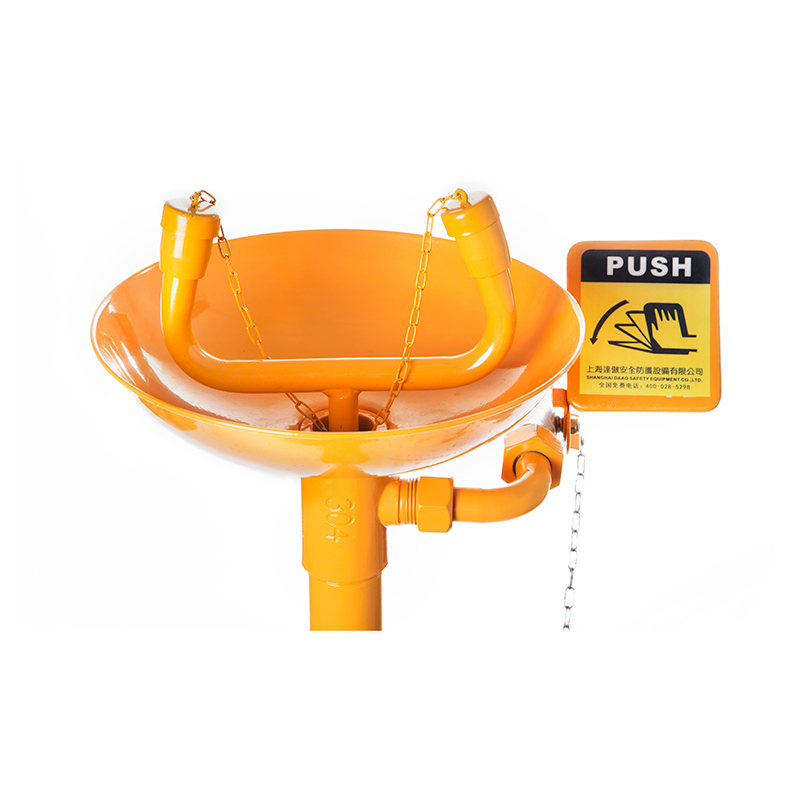

The vertical eyewash is installed on the ground, equipped with a base, foot pedal, ball valve, nozzle and water basin. The uniquely designed nozzle provides a lower rate of water output, and the bubbler and the micro-holes independently output water, providing a softer water flow to rinse the face and face at the same time.

Category:

  • Model: DAAO6623-J
  • Height: 1110mm
  • Material: 304 stainless steel + ABS coating
  • Standard: ANSI Z 358.1-2014, EN15154.1 / 2: 2006
  • Tube wall thickness: 2.5/3mm
  • Working pressure: 0.2MPa-0.6MPa
  • Working environment temperature: 5 ℃ -35 ℃
  • Water inlet size: NPT 1/2 ”
  • Drain size: NPT 1 1/4 ”
  • Eyewash flow: ≥11.4L / min
  • Optional accessories:eyewash bowl cover lid, material update to SS316
