Designed for cold weather, heat tracing cable will automatically turn on once the water temperature below setting parameter to make sure the water free from freeze.
By optional, it can equipped with an audible and visual alarm, once the user starts the eyewash or shower,alarm will start work simultaneously.

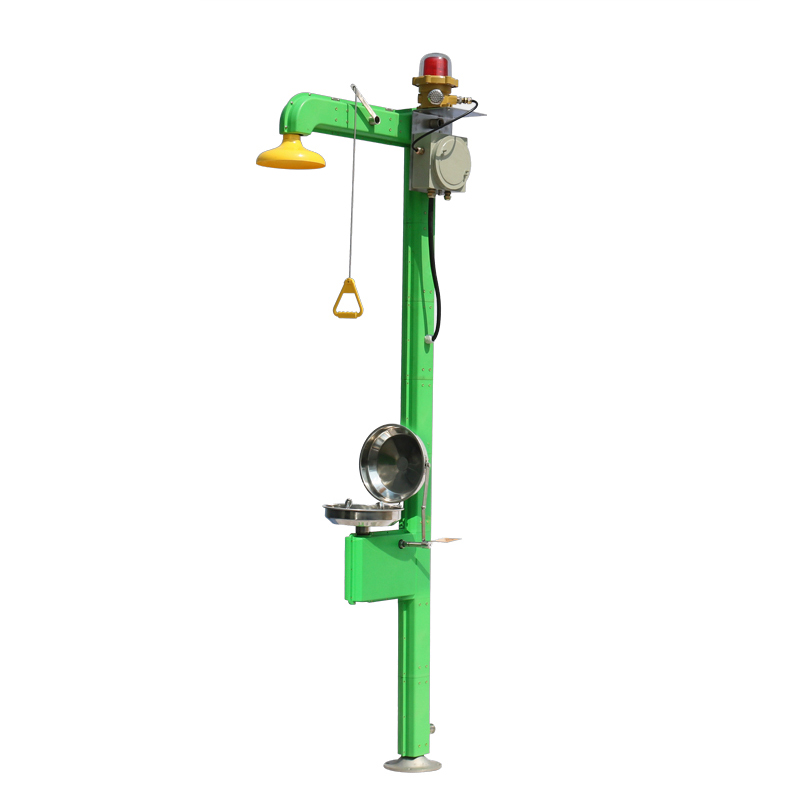

- Model: DAAO6615-EF-X
- Height: 2410mm
- Material: stainless steel 304 (SS316L is optional) +ABS engineering plastic Shell+PP insulation
- Certificate & Standard: ANSI Z 358.1-2014, EN15154.1/2:2006
- Pipe Wall Thickness: 2.5mm
- Function: eye washing, body showering, water heating.
- Working pressure: 0.2MPa-0.6MPa
- Working environment temperature: -25 ° C to 35 ° C
- Inlet size: NPT 1 1/4″
- Drain size: NPT 1 1/4″
- Voltage:220V/50Hz(customized available)
- Power: 200Watt(customized available)
- Explosion proof level: Ex II T4-T6
- Eyewash flow rate: ≥11.4L/min
- Shower flow rate: ≥75.7L/min
