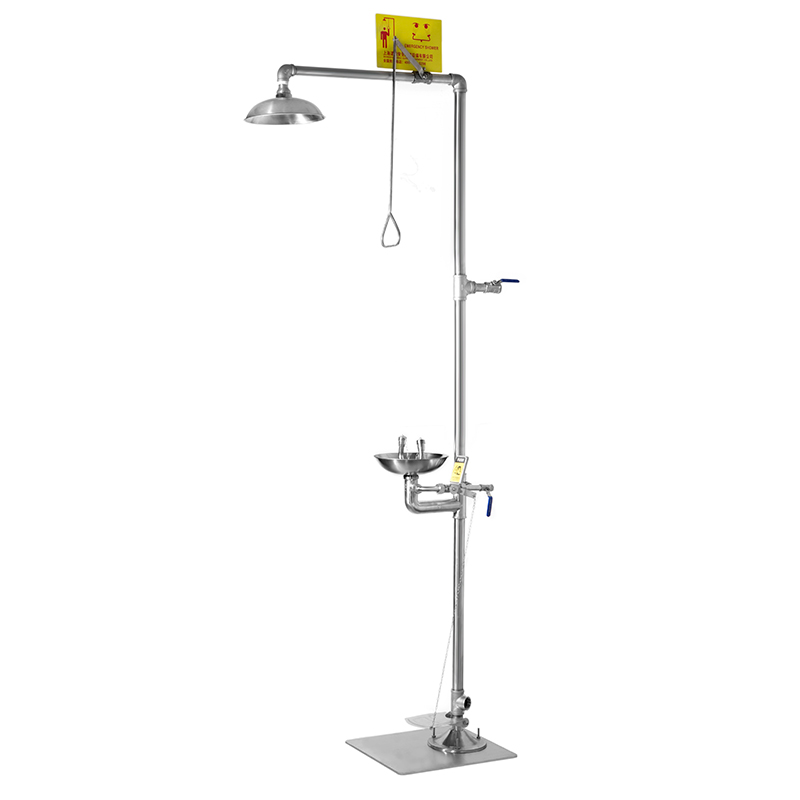

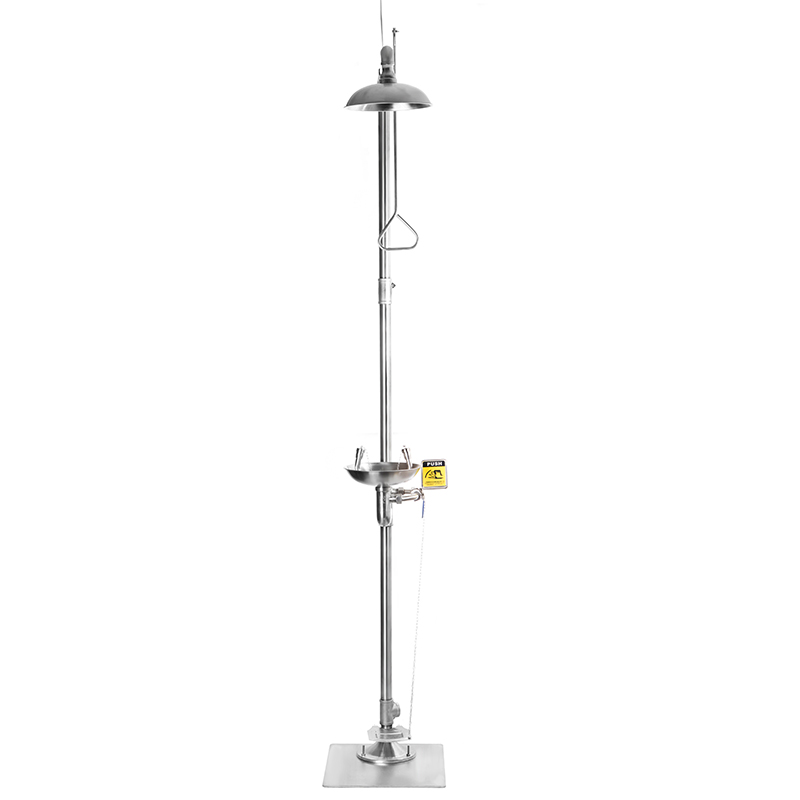

- Model: DAAO6615-A
- Height: 2410mm (can be customized)
- Material: 304 / 316L stainless steel + PVC
- Working environment temperature: 10 ℃ -40 ℃
- Standard: American Standard ANSI Z 358.1-2014, EN15154.1 / 2: 2006
- Main functions: eye wash, punch, working pressure: 0.2MPa-0.8MPa
- Water inlet size: NPT 1 1/4 ”
- Drain size: NPT 1 1/4 ”
- Eyewash flow: ≥11.4L / min
- Body flow: ≥75,7L / min

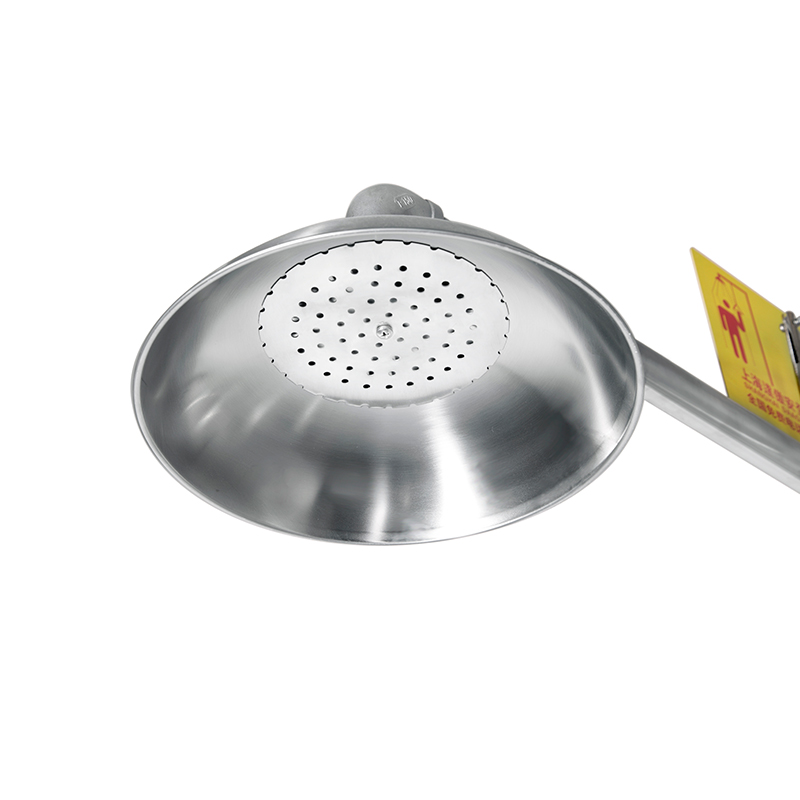

Shower Head
Based on the American standard requirements and our unique design, one time stamping molding shower head have total 94 holes and the edge is half hole which can create the perfect water spay area.

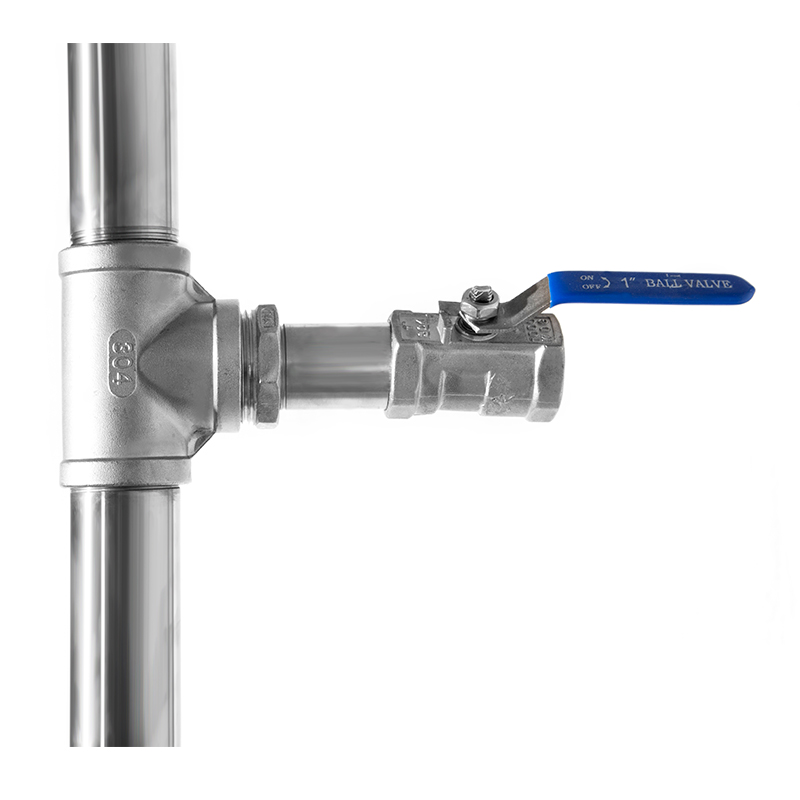

-One time stamping molding. Manual inlet valve.
-ABS plastic combine with seamless 304 stainless steel and 3 layers filter
-Flag handle: bright yellow. Easy to recognize from far distance.

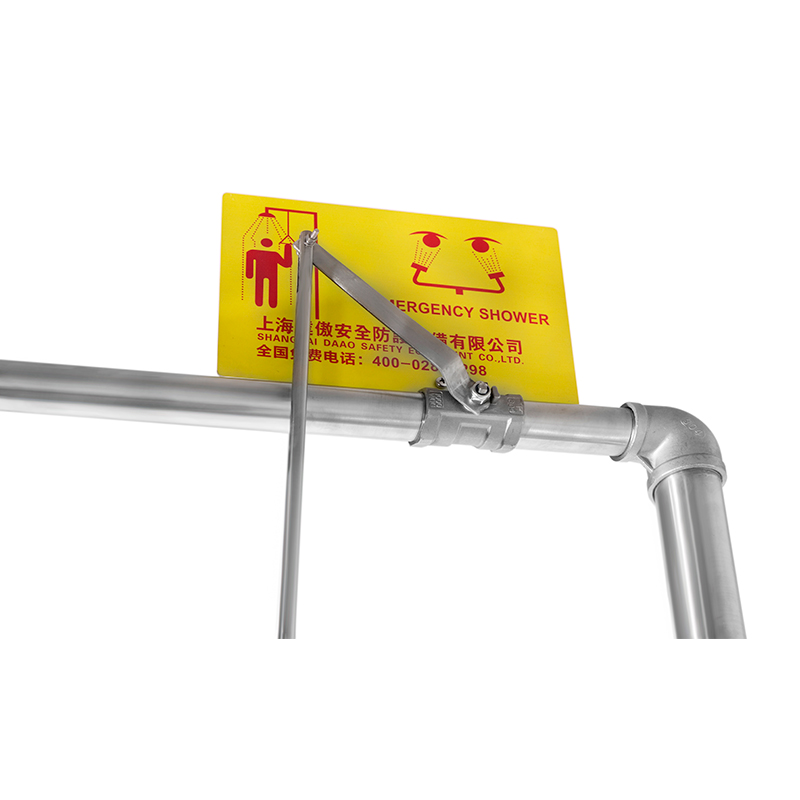

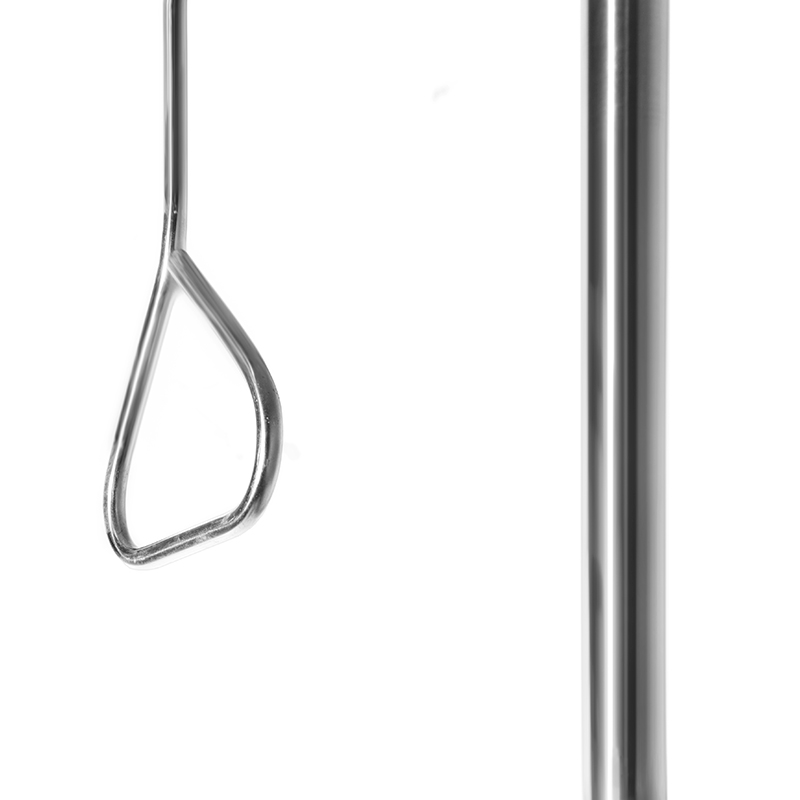

Pipe &Pull Rod
Good quality 304 stainless steel tube content with more than 8% nickel. Both inside and outside is finished with fine polishing.
Floor mounted
Expansion bolts * 3 for connection

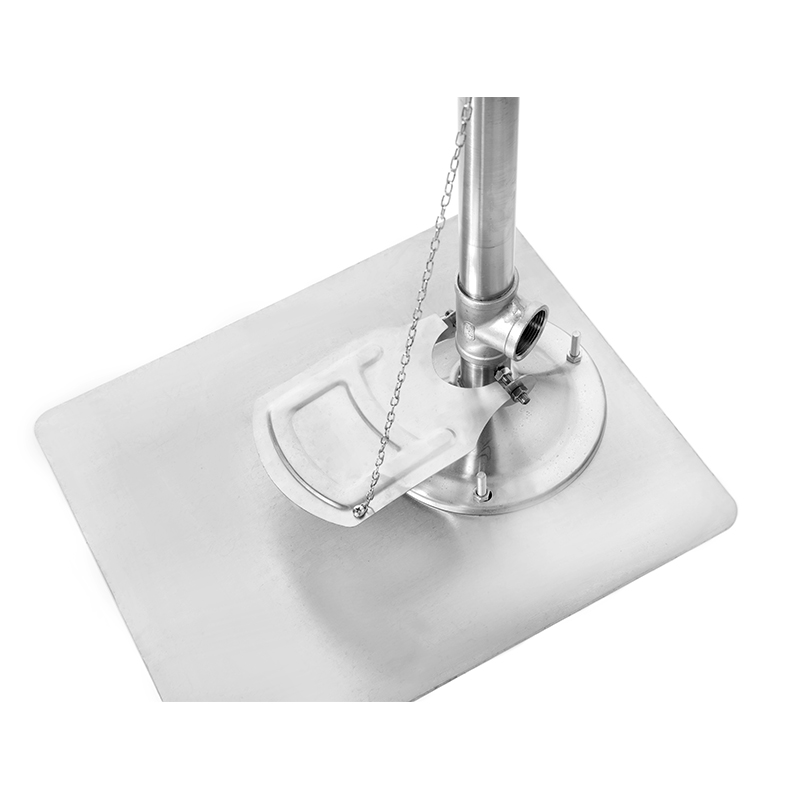

Foot pedal
Packing
Onsite
