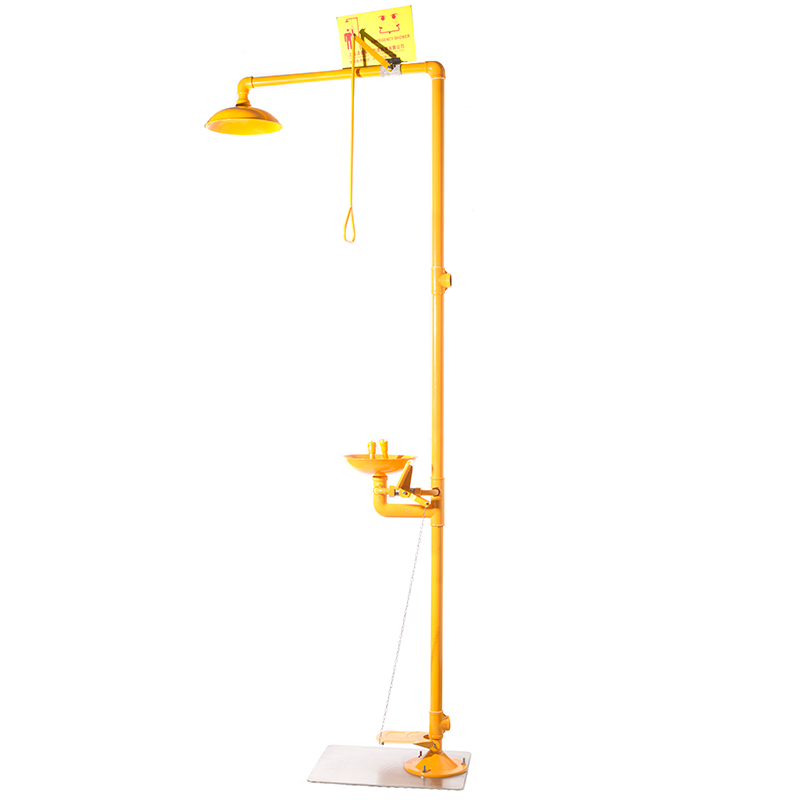

- Model: DAAO6613-XJ
- Height: 2410mm
- Material: stainless steel 304 (SS316L is optional)+ABS Coating
- Certificate & Standard: ANSI Z 358.1-2014, EN15154.1/2:2006
- Pipe Wall Thickness: 2.5-3mm
- Function: eye washing, body showering
- Working pressure: 0.2MPa-0.6MPa
- Working environment temperature: 10 ° C -35° C
- Inlet size: NPT 1 1/4″
- Drain size: NPT 1 1/4″
- Shower Head diameter: 10”/ 26cm
- Eyewash bowl diameter: 10”/ 26cm
- Eyewash flow rate: ≥11.4L/min
- Shower flow rate: ≥75.7L/min
- Remark: eyewash can be activated by hand push or foot pedal
Shower Head
Based on the American standard requirements and our unique design, one time stamping molding shower head have total 94 holes and the edge is half hole which can create the perfect water spay area.
1″ shower ball valve
Stainless steel 304
Eye catching sign board
-One time stamping molding
-ABS plastic combine with seamless 304 stainless steel and 3 layers filter
-Flag handle: bright yellow. Easy to recognize from far distance.
Floor mounted
Expansion bolts * 3 for connection
Foot pedal
Packing
Demonstration
