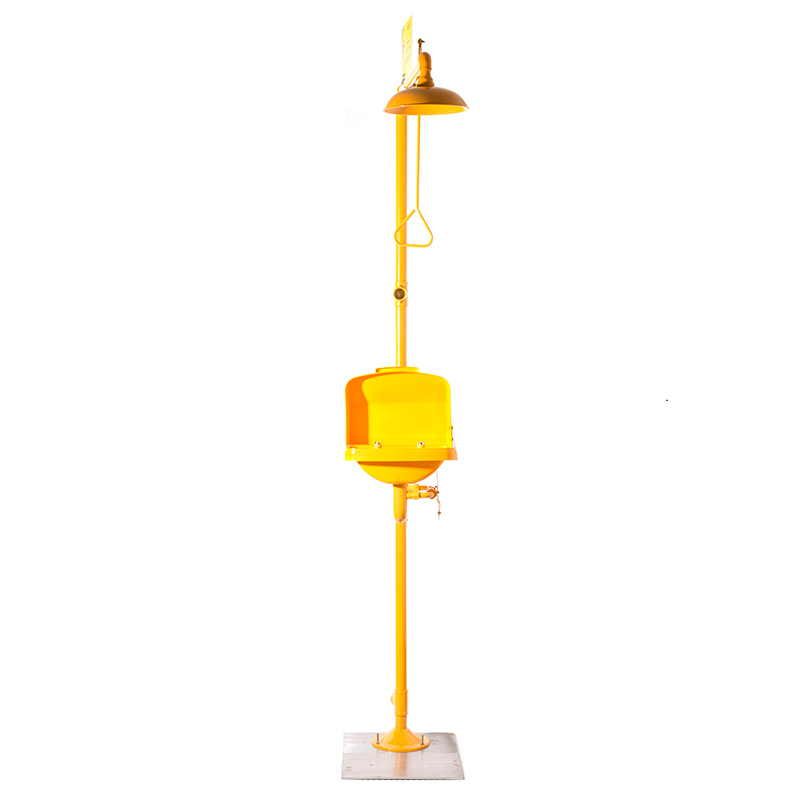

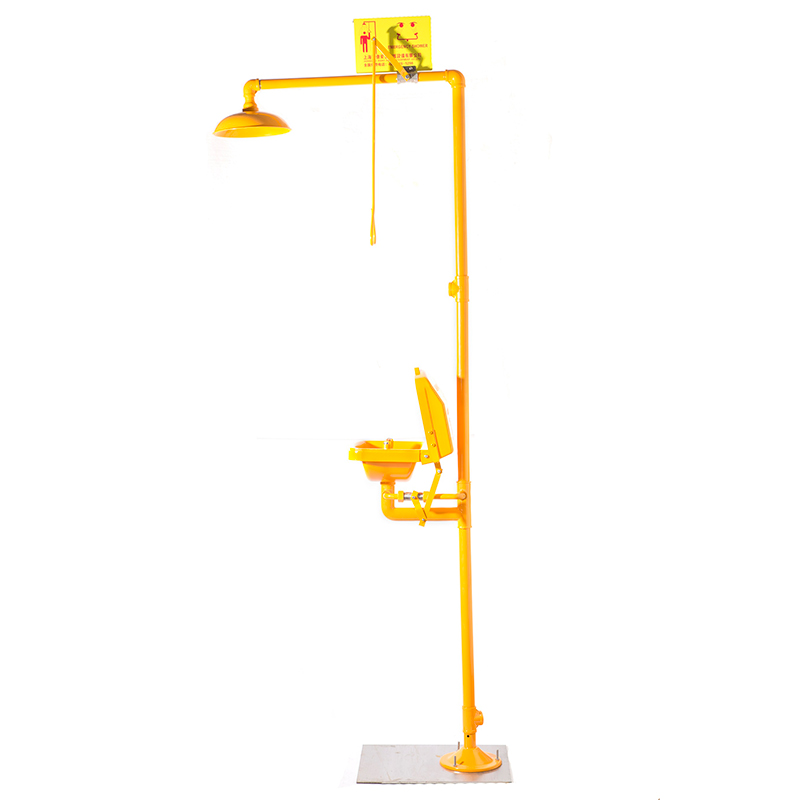

- Model: DAAO6613-D
- Height: 2410mm
- Material: stainless steel 304 (SS316L is optional)+PVC +ABS Coating
- Certificate & Standard: ANSI Z 358.1-2014, EN15154.1/2:2006
- Pipe Wall Thickness: 2.5-3mm
- Function: eye washing, body showering
- Working pressure: 0.2MPa-0.6MPa
- Working environment temperature: 10 ° C -35° C
- Inlet size: NPT 1 1/4″
- Drain size: NPT 1 1/4″
- Shower Head diameter: 10”/ 26cm
- Eyewash bowl diameter: 10”/ 26cm
- Eyewash flow rate: ≥11.4L/min
- Shower flow rate: ≥75.7L/min
Shower Head
Based on the American standard requirements and our unique design, one time stamping molding shower head have total 94 holes and the edge is half hole which can create the perfect water spay area.
1″ shower ball valve
Stainless steel 304
Eye catching sign board
Pipe &Pull Rod
Good quality 304 stainless steel tube content with more than 8% nickel. Both inside and outside is finished with fine polishing.
-Eyewash Bowl &Lid : One time stamping molding PVC
-Spray nozzle: ABS plastic combine with seamless 304 stainless steel and 3 layers filter
-Eyewash bowl lid linked with eyewash valve. Open the lid will active the eyewash simultaneously.
Floor mounted
Expansion bolts * 3 for connection
Foot pedal(optiona)
Packing
Onsite
