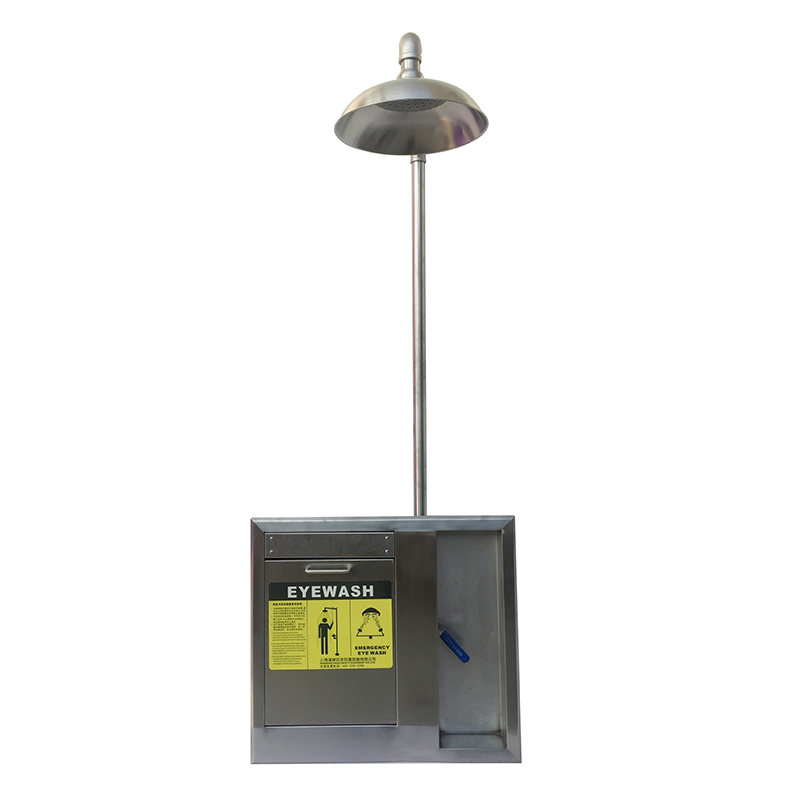

304 / 316L stainless steel recessed eye wash is a stretch eye wash. The concealed design allows it to be stowed into the wall when not in use, without occupying any extra space. The surface can be polished or sandblasted as required. During the eyewash process, the integrated drainage tray can hold the drainage waste liquid, which is scientifically designed and durable.
- Material: stainless steel 304 (SS316L is optional)
- Certificate & Standard: ANSI Z 358.1-2014, EN15154.1/2:2006
- Pipe Wall Thickness: 2.5/3mm
- Function: eye washing, body showering, working pressure: 0.2MPa-0.6MPa
- Working environment temperature: 10 ° C -35° C
- Inlet size: NPT 1 1/4″
- Drain size: NPT 1 1/4″
- Shower Head diameter: 10”/ 26cm
- Eyewash flow rate: ≥11.4L/min
- Shower flow rate: ≥75.7L/min
