- Model: DAAO6623EH-X
- Height: 1310mm
- Material: 304 / 316L stainless steel + ABS engineering plastic
- Tube wall thickness: 2.5mm
- Working pressure: 0.2MPa-0.6MPa
- Working environment temperature: -30 ℃ to 35 ℃
- Water inlet size: NPT 1/2 ”
- Drain size: NPT 1 1/4 ”
- Power: 6KW
- Voltage: 380V / 50HZ(customizable)
- Eyewash flow: ≥11.4L / min
- Explosion-proof grade: Exd IICT6
- Protection level: IP65
- Optional function :Sound and light alarm
- Standard: American Standard ANSI Z 358.1-2014, EN15154.1 / 2: 2006

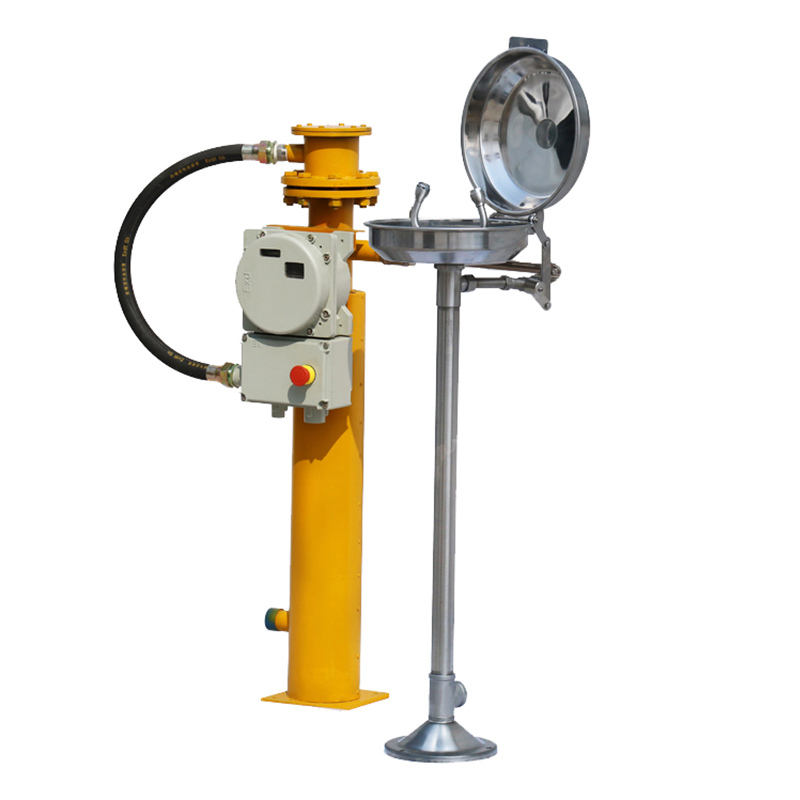

6623EH-X Electrical Heated Freeze Protected Emergency Eye Wash Station
Electrical Heated Freeze Protected Emergency Shower and Eye Wash StationThe electric heat tracing eyewash is an outdoor antifreeze eyewash, which can be used normally in the range of -25℃-45℃. The outer shell is made of PVC material resistant to acid and alkali, and the inner tube is made of 304 stainless steel.
Material: never rust, wound by high-performance heating electric heating cable, insulation layer is made of polyurethane, the overall color is bright yellow
Nozzle: the punch nozzle is ABS engineering plastic, the color is warning yellow; the punch nozzle is ABS engineering plastic, the color is safe green
Valve: The punching valve is a corrosion-resistant 304 stainless steel ball valve; the punching valve is a 1/2 corrosion-resistant 304 stainless steel three-way ball valve.
Water inlet: for the inch internal rib
Flow rate: According to different pipeline pressures, the flow rate changes accordingly. Within the specified water pressure range, the maximum water output is 114 liters/min.
Use environment: places where hazardous substances are splashed, such as polluted environments such as chemicals, hazardous liquids, solids, and gases
